How To Use Cattle/Cow Farm Visual Artificial Insemination Gun

Product Description

Although the artificial insemination technology has been very popular, however there are still many problems in the operation of cattle artificial insemination, before we understand the technology of cattle artificial insemination, let’s take a look at the reproductive system of cattle.

The insemination point is at the deepest point of the uterine horn. This proves that the depth of insemination has an effect on the conception of pregnancy. Insufficient depth will affect the probability of sperm entry. If the depth is too deep, it will cause unilateral insemination. If it is not the side of follicle, it will cause false pregnancy.

Artificial Insemination

The recto-vaginal technique is the most common form of insemination. An arm enters the body through the anus, holds the cervix and straightens the cervix. The other hand inserts the insemination gun through the multiple layers of folds to achieve internal uterine insemination.

Key point of the recto-vaginal technique:

1. Need to clean out the stool.

2. Avoiding make the cow nervous.

3. Confirm the location of muzzle before insemination.

4. Pay attention to the sanitary protection and avoid zoonotic diseases.

Visual Artificial Insemination

The way you can find the location of the cervix via the screen observation and insert the fine tube insemination needle, pass through the folds to enter into the uterus.

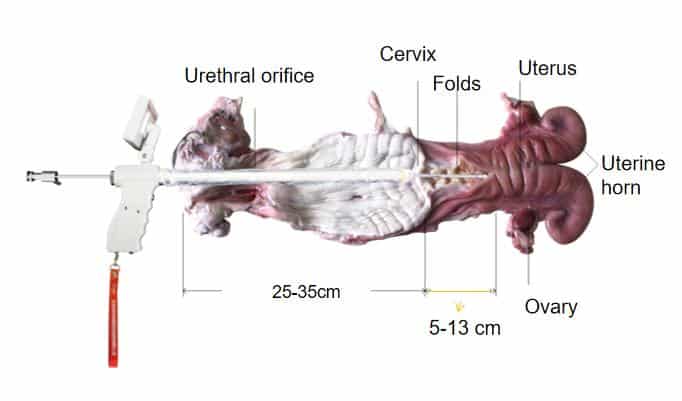

Anatomy of reproductive sperm transfer in a cow

Continuous rotation in one direction is strictly prohibited

1. Vision expansion cap can give clearer vision around the uterus.

2. The air pump can blow off the mucus stick on the camera.

3. The vibration feature can promote uterine contraction and relieve tension of the object.

4. The heating feature can make the object adapt the insemination gun quickly.

5. The disposable barrel cover make the insemination more sanitary and more convenient.

6. The spherical tip sleeve can pass through the folds easier.

Instruction of Visual Artificial Insemination

Preparation: Alcoholic sterilization, lens cleaning, Battery condition checking.

2. Clean the vagina of the object with 0.2% potassium permanganate or normal saline. Then wipe with a wet towel.

3. Use the thermostat to unfreeze the frozen semen. 2 minute at 37 degree Celsius or 20 second at 40 degree Celsius. Point: Put the cap upside down after opening the tank for avoiding pollution; Do not let the unsealed semen fine tube contact with any unsterilized stuff.

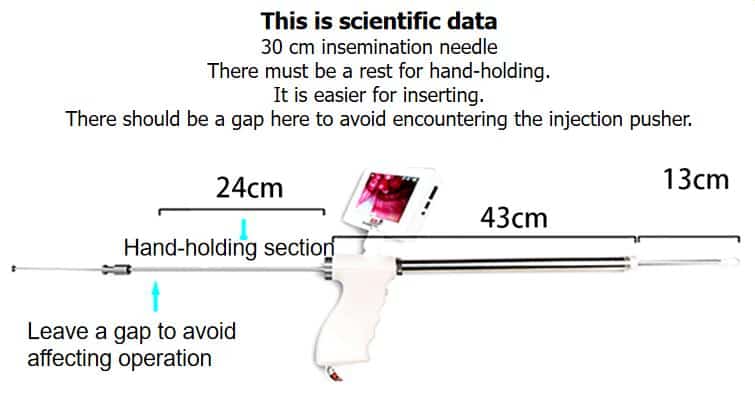

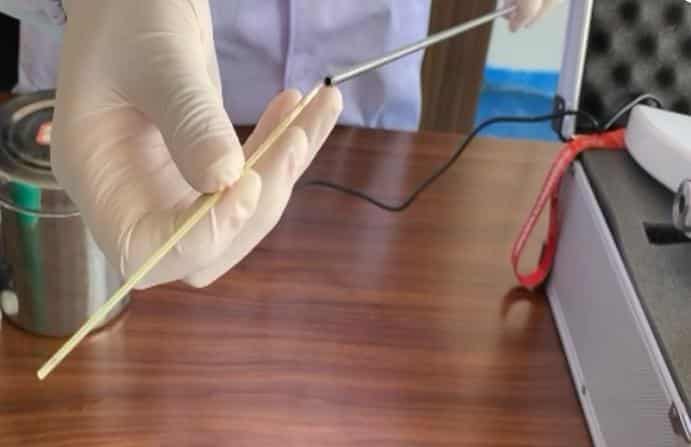

4. Pull out the inner core of the insemination need about 10cm, put the cotton plug part into the insemination needle. Then cut off the upper sealing part with the scissors, install the outer sleeve and stuck in the clamp spring.

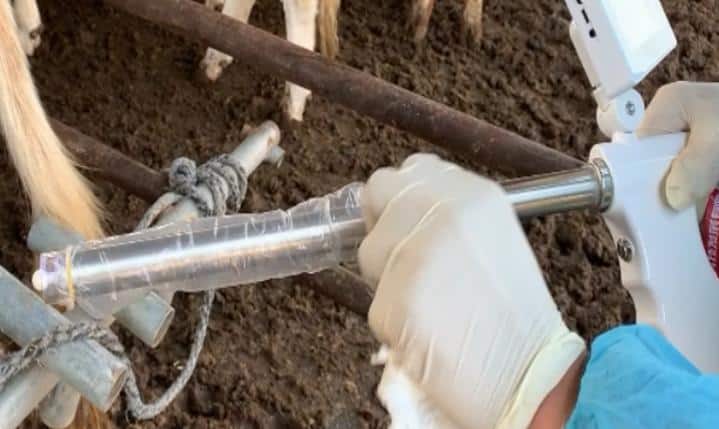

5. Inserting the visual AI gun and observing the location of the cervix. Put on the expansion head and the disposable barrel cover. Insert the visual insemination gun into the vagina of the object. Initially insert 5-10 cm at a upward angle and then continue inserting about 30 cm horizontally until the cervix can be clearly seen. Pop the vibration feature during the insertion to relieve the object. Pump the air channel if there are mucus on the camera.

6. Insert the insemination needle through the barrel: Most of the cow’s cervix is upturned. So you can lift the visual gun then insert the needle slowly.

7. Cross the folds and reach the uterus: Keep observing the screen and adjust the visual gun. The other hand holds the back end of the needle, push down and insert with a rotation slightly. Follow the movement of the cervix if the object is tense. Make sure the barrel points to the cervix straightly.

8. Maintain the visual gun. Insert the needle through 2-3 layers of the folds about 6-10 cm. Then inject the semen.

9. Take out the needle then remove the visual gun with popping vibration. It can promote the contraction of the uterus, improve the pregnancy rate. Take off the expansion cap and the disposable barrel cover and clean the visual gun.
